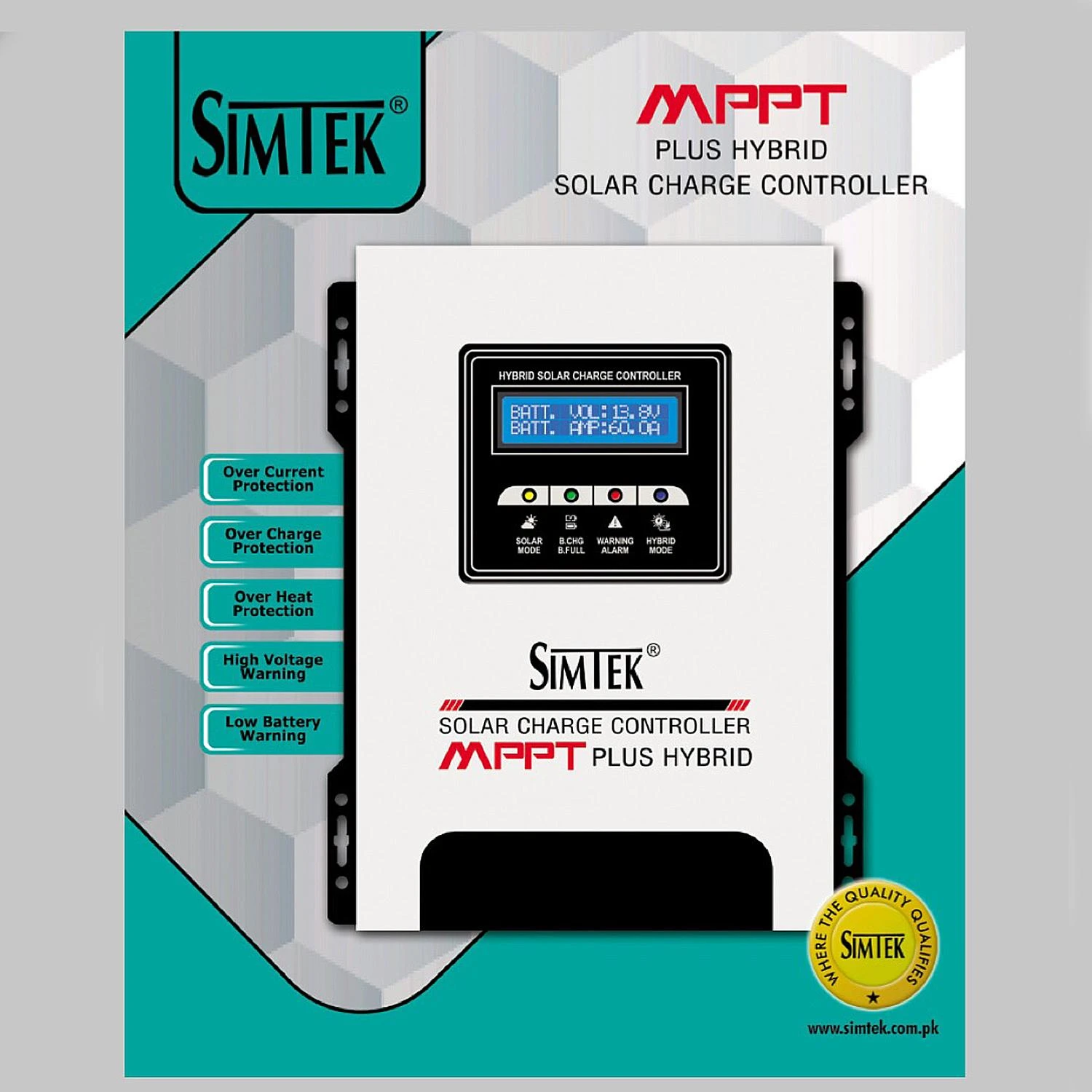

Hybrid MPPT Solar Charge Controller 60A Smart Digital DC 12V24V

Product Details

Product details of Hybrid MPPT Solar Charge Controller 60A Smart Digital DC 12V/24V
Hybrid – Battery Charger Auto Cut Off
220v Out You can Connect Charger or UPS.
Daylight WAPDA not Used.
At Evening Auto WAPDA Convert.
Digital display & Led battery Level indicator
96% efficiency in 12-V systems and 97% efficiency in 24-v systems
Wide input voltage range: 15 V to 90 V
High rated output current: 60A
Over-charge and surge protections
System over-temperature and ambient light detection capabilities
MODEL# EC MPPT V3-V4
POWER 60Amp
Solar System Voltage 12V/24V
PV Operation Voltage 15-85Vdc @12V

34-85Vdc @24V

Max. PV open circuit voltage 90V-DC
Max. PV input power 12V 1000W / 24V 2000W
Max. charging current 60A
Conversion Efficiency 98%
Protection High voltage, high temperature protection
BATTERY Battery Type Lead Acid, Tubular, AGM
Charging Algorithm 3-stage: Bulk, Float, Trickle
Equalize charge voltage 14.7v
Output volt without Battery 12V:14.2V

24V:29V

COOLING FAN THERMALLY CONTROLLED
Specifications of Hybrid MPPT Solar Charge Controller 60A Smart Digital DC 12V/24V
BrandNo BrandSKU288806793_PK-1553169258
What’s in the box 1 x Solar MPPT Controller
