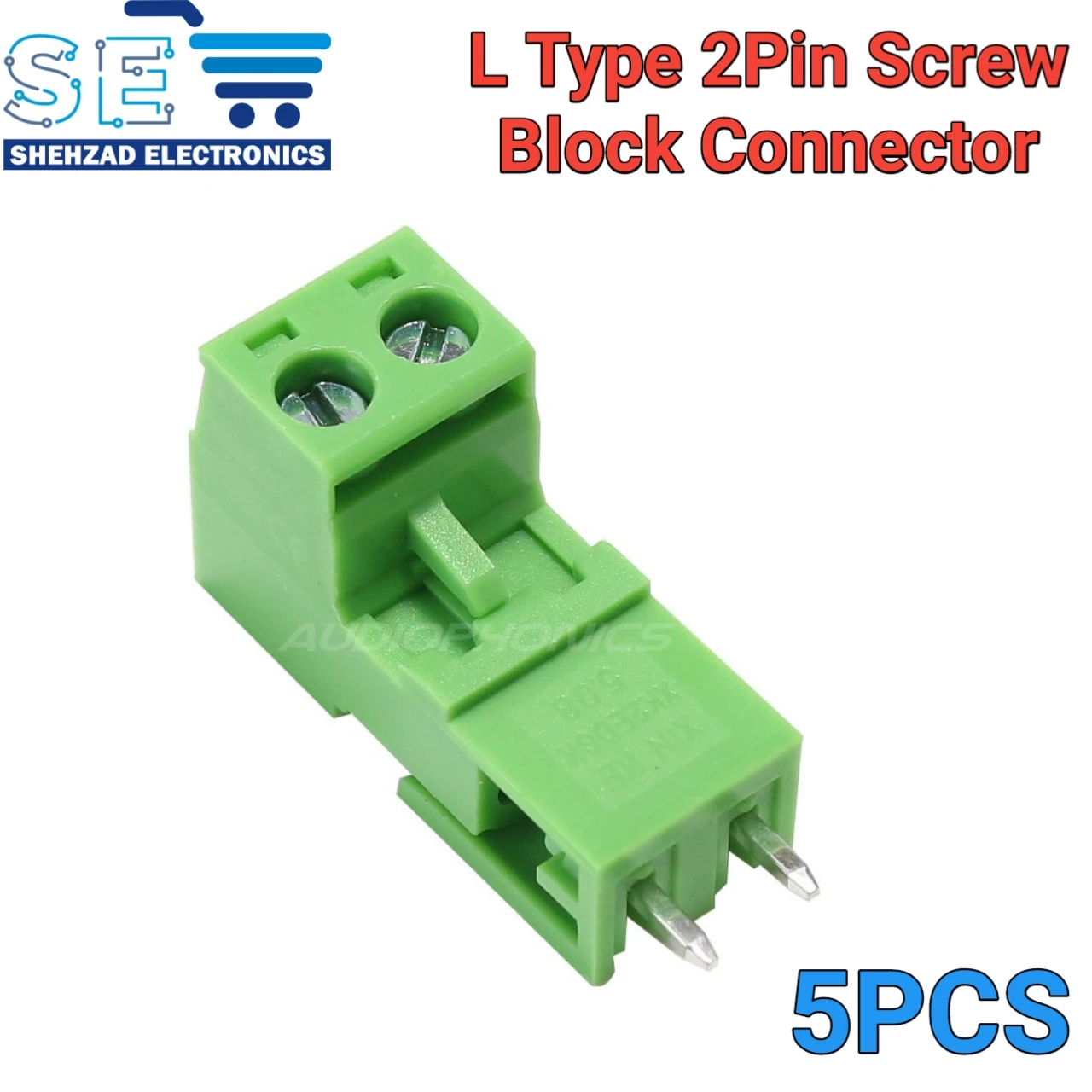

5PCS L Type 2pin 5.08mm Screw Terminal Block Connector

Product Details

Product details of 5PCS L Type 2pin 5.08mm Screw Terminal Block Connector
Pitch:5.08mm
Poles: 2P
Screw: M2.5 Steel Zinc plated
Wire guard: phosphor bronze, Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PBT, UL94V-0
Rated current: 10A
Withstanding voltage: AC1500V/1Min
Temp range: -40~+105 Celsius
MAX Soldering: +150 Celsius for 5sec
Torque: 0.4 Nm (3.5lb.in)
Strip length: 7-8mm
For AWG 22-14
MAX 2.5MM2
2 Pin 5.08mm Pitch Pluggable Screw Terminal Block is a compact and versatile terminal block. It finds its use in connecting wires to the
Board
. Because of the small size, the terminal block allows for the connection of two conductors on a
Board
, where space is premium. Features: Saves space due to the small design Screw connection with tension sleeve Maximum contact force ensures a low-temperature rise Connection in accordance with EN-VDE Standard. L Type 2pin/way 5.08mm Screw Terminal Block
